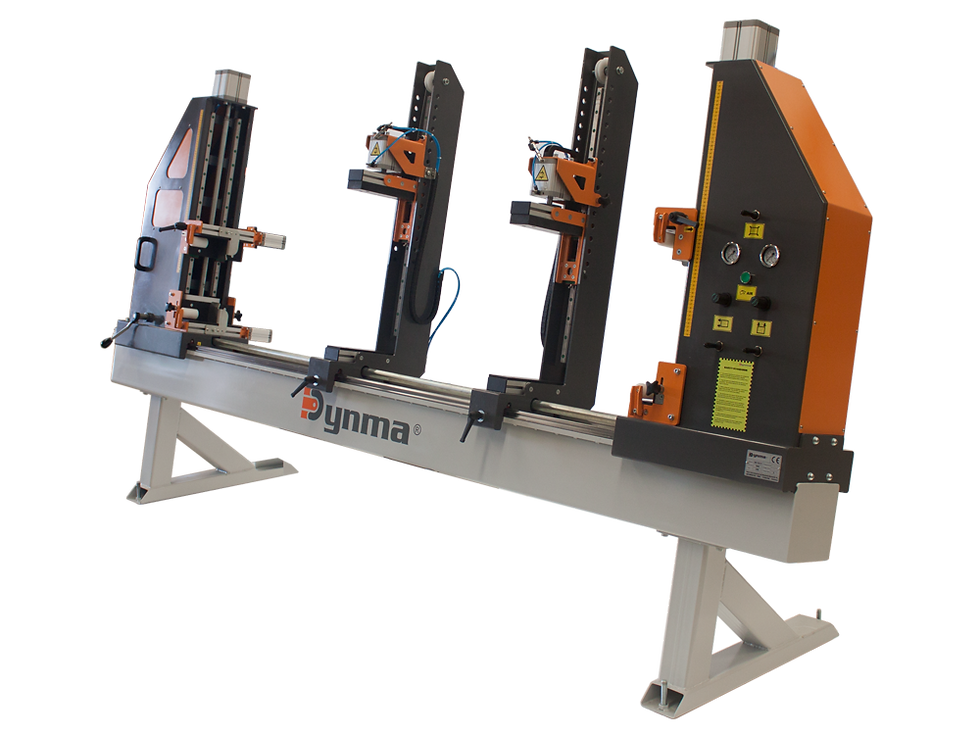

BOX 3.0 Drawer, Door & Frame Clamp
SKU: A1100
A pneumatic drawer, door & frame clamp
The highly versatile Box 3.0 is a totally pneumatic clamp, that, thanks to its functional design and adjustment process, ensures a straightforward, precise and fast assembly of drawers, doors and frames of a wide variety of dimensions.
The different work modes mean the Box 3.0 offers different manoeuvres which enables it to clamp any kind of joint (folding system, dovetail, dowels etc.) with perfect connection and squareness of the finished product, every time.
Its special pressing mechanism means folding connections and drawer fronts with glass insets can be pressed without damage.
CLAMPING DIMENSIONS Maximum / minimum drawer length 1400 / 200 mm Maximum / minimum drawer height 820 / 180 mm Maximum drawer thickness 250 mm CLAMPING FORCE Maximum lateral force (X) 800 kg Maximum vertical force (Y) 800 kg Maximum frontal force (Z). optional “Kit Door” 160 kg CLAMPING ELEMENTS Angle brackets with anti-friction plates 80 mm Working height 850 mm Lateral / vertical clamping course 50 / 50 mm PNEUMATIC CONNECTION Maximum operating pressure 5 bar Consumption 10 Nl/min. DIMENSIONS / WEIGHT External transport dimensions 2500x2000x900 mm Weight 410 kg
